Name: RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Price: 28,500.00 USD
Availability: InStock

Haus > produits > Wasserbohrmaschine >

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

full hydraulic water well drilling rig

400 meter crawler-type drilling rig

water well drilling machine with warranty

Herkunftsort:

CHINA

Markenname:

RanCheng

Zertifizierung:

CE, ISO 9001:2000

Modellnummer:

RCF400C

Treten Sie mit uns in Verbindung

Antrag Ein Zitat

Einzelheiten zum Produkt

Name:

Mehrfunktionsbohranlage

Modell:

RCF400C

Bohrtiefe:

400 m

Bohrfläche:

140 bis 350 mm

Luftverbrauch:

17 bis 36 m3/Min.

Luftdruck:

1,7-3,5mpa

Hervorheben:

full hydraulic water well drilling rig

400 meter crawler-type drilling rig

water well drilling machine with warranty

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

USD27000-USD30000

Verpackung Informationen

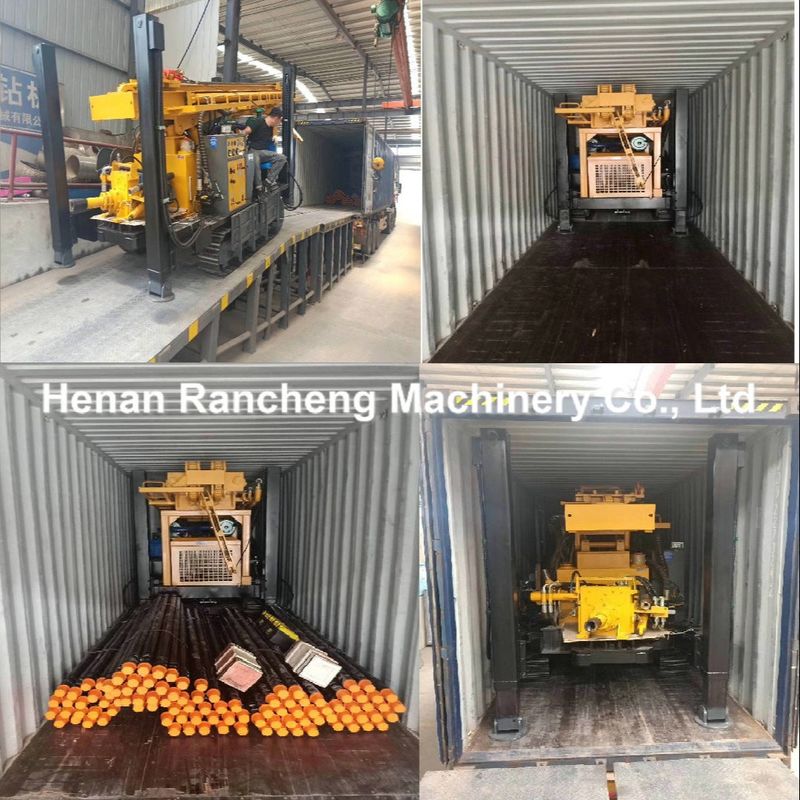

Es kann mit einem 20 -Zoll -Behälter versendet werden

Lieferzeit

10-15 Arbeitstage

Zahlungsbedingungen

T/T, Western Union

Versorgungsmaterial-Fähigkeit

100 Sets pro Monat

Verwandte Produkte

Video

RCF280C Stahlketten-Wasserbohrgerät Maschine 280m Tiefe Untergrund Bohrlochbohrgerät

Erhalten Sie besten Preis

Video

45-65r/Min Drehgeschwindigkeit Yuchai 180m RCF180S Mini Wasserbohrmaschine

Erhalten Sie besten Preis

Video

200m Bohrmaschine/Borewell/Hydraulische Crawler-Bohrmaschine mit pneumatischem Wasserbohrgerät

Erhalten Sie besten Preis

Video

High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

Kontakt jetzt

Beschreibung des Produkts

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

Machine Introduction

The RCF400C deepwater well drilling rig is a product independently developed by our company. This next-generation down-the-hole hammer, combined with greater pneumatic power, plays a significant role in increasing drilling speed.

Made of high-quality materials and featuring a sleek and compact design, our drilling rigs offer increased efficiency, reduced failure rates, increased cost-effectiveness, and a superior overall cost-effectiveness. Our water well drilling rigs have received substantial market recognition and positive feedback from our customers.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Application

our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

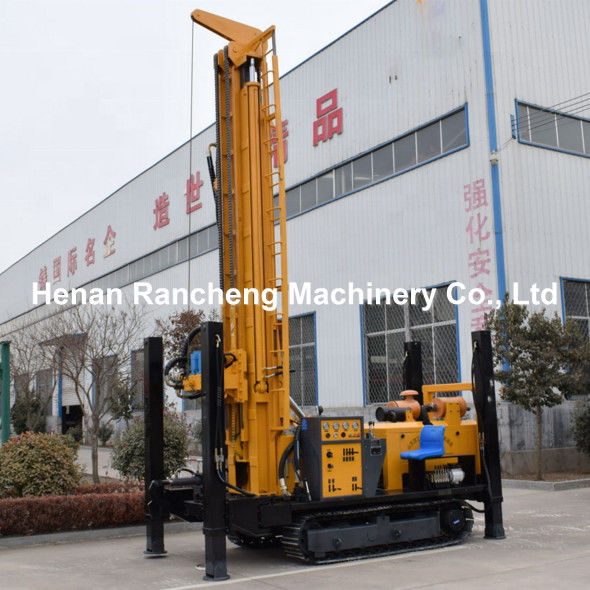

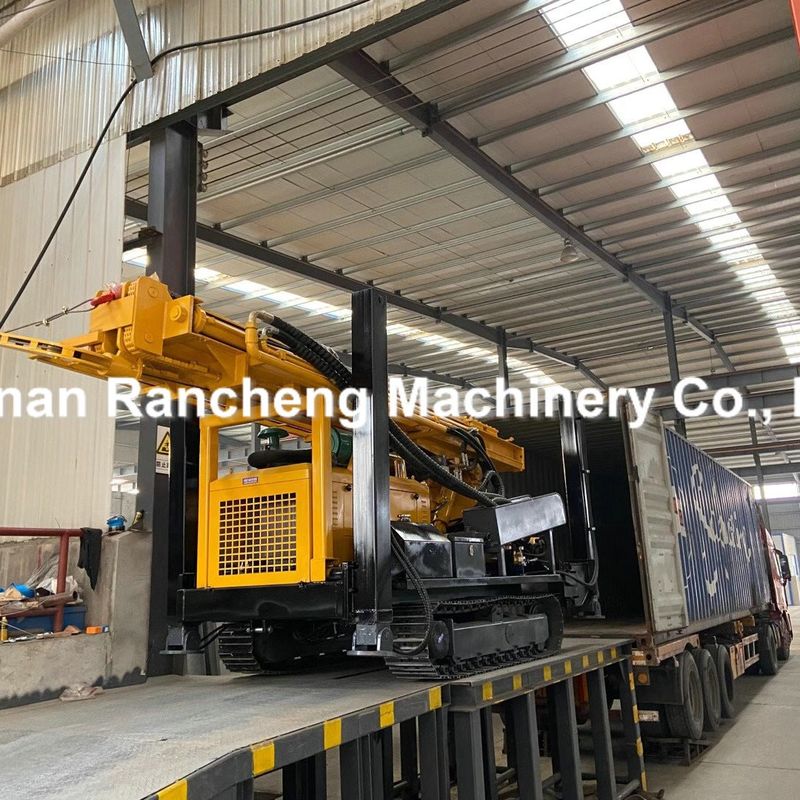

Machine Pictures

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig 0
