Name: 350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF350C
Price: 34,860.00 USD
Availability: InStock

Haus > produits > Wasserbohrmaschine >

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

350m hydraulic water well drill rig

portable crawler drilling rig machine

diesel borehole drilling equipment

Herkunftsort:

CHINA

Markenname:

RanCheng

Zertifizierung:

CE, ISO 9001:2000

Modellnummer:

RCF350C

Treten Sie mit uns in Verbindung

Antrag Ein Zitat

Einzelheiten zum Produkt

Name:

350 m 450 m 500 m Hydraulikdraht Diesel Bohrloch Wasserbrunnen Bohrgerät Ausrüstung Tragbarer Crawle

Modell:

RCF350C

Bohrtiefe:

350 m

Luftverbrauch:

17 bis 36 m3/Min.

Luftdruck:

1,7-3,5mpa

Abmessungen (L*W*H):

6000 × 2000 × 2550 mm

Hervorheben:

350m hydraulic water well drill rig

portable crawler drilling rig machine

diesel borehole drilling equipment

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

USD29860-USD39860

Verpackung Informationen

Es kann mit einem 20 -Zoll -Behälter versendet werden

Lieferzeit

10-15 Arbeitstage

Zahlungsbedingungen

T/T, Western Union

Versorgungsmaterial-Fähigkeit

100 Sets pro Monat

Verwandte Produkte

Video

RCF400C Full Hydraulic Water Well Drilling Rig Crawler-type 400 Meter Water Well Drilling Rig

Erhalten Sie besten Preis

Video

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Erhalten Sie besten Preis

Video

680m crawler drilling Hydraulic water well drilling rig multi functional drilling equipment with 154KW cummins engine

Erhalten Sie besten Preis

Video

Multifunctional 800m Deep Hydraulic Crawler Drilling Machinery

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

Kontakt jetzt

Beschreibung des Produkts

350m Hydraulic Swivel Diesel Borehole Water Well Drill Rig Equipment Portable Crawler Water Well Drilling Rig Machine

Product Description

The RCF350C deepwater well drilling rig is a product independently developed by our company.
Made of high-quality materials and featuring a stylish and compact design, our rig boasts higher efficiency, lower failure rates, greater cost-effectiveness and durability, and offers a superior overall cost-effectiveness. Our water well drilling rigs have been well-recognized in the market and received positive feedback from our customers.

Our water well drilling rigs utilize the latest models and advanced hydraulic technology, offering low energy consumption, high torque, and convenient well positioning. The combination of a new-generation down-the-hole hammer and increased pneumatic power significantly increases drilling speed.

Technical Parameters

Model	RCF350C
Bore diameter(Hammer)	140-350mm
Bore depth	350m
Air consumption	17-35m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	6200-8500Nm
Rotary speed	55-115r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2000×2550mm
Weight	8600Kg
Diesel engine	91KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling
Operating system	Full hydraulic operation

Application

The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

After service

We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

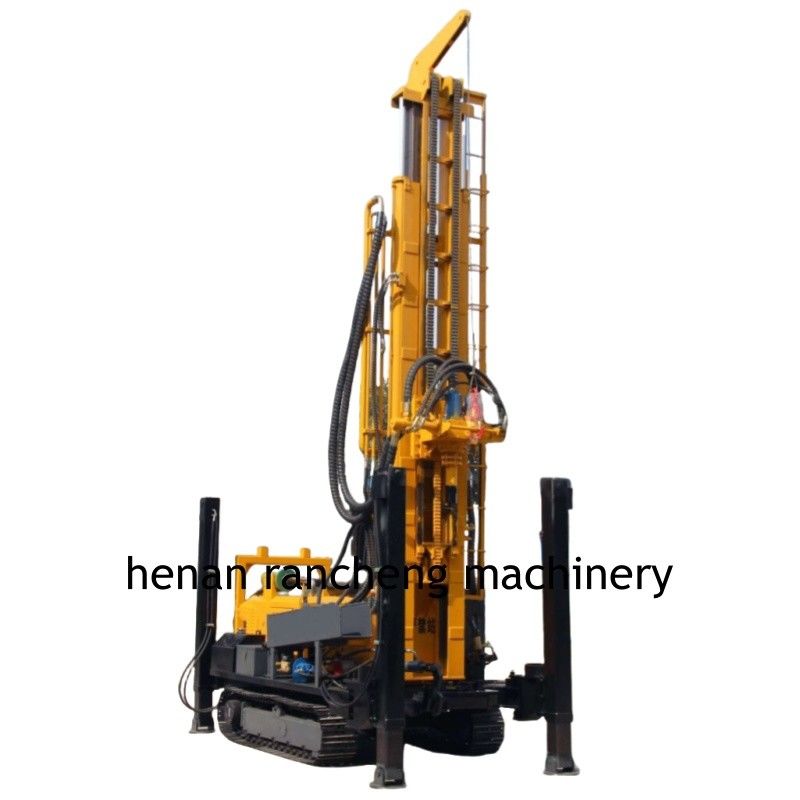

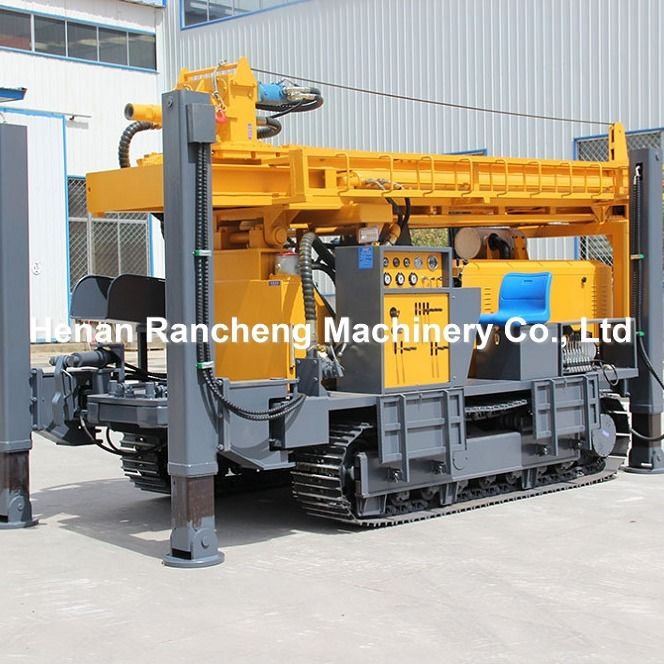

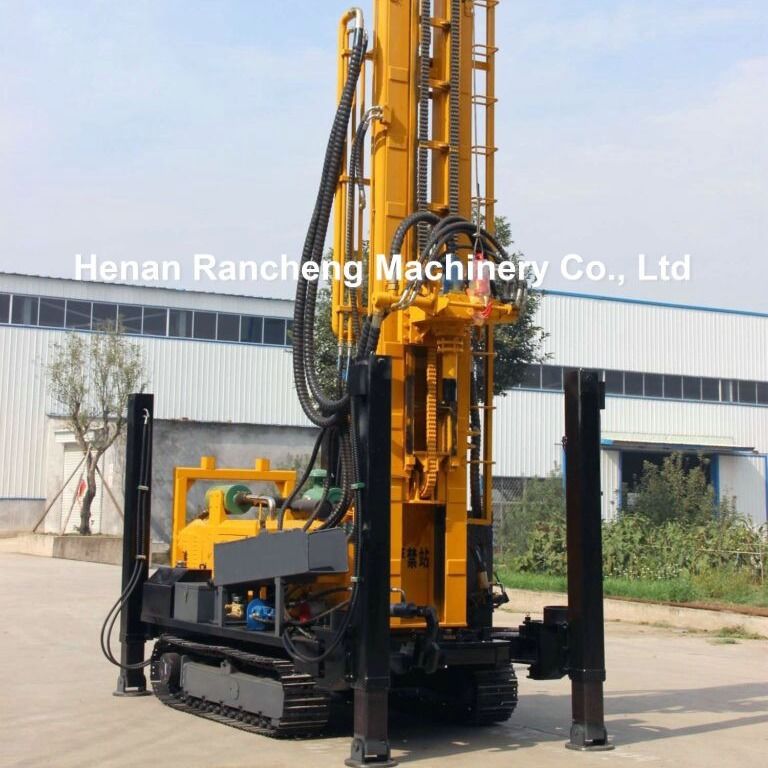

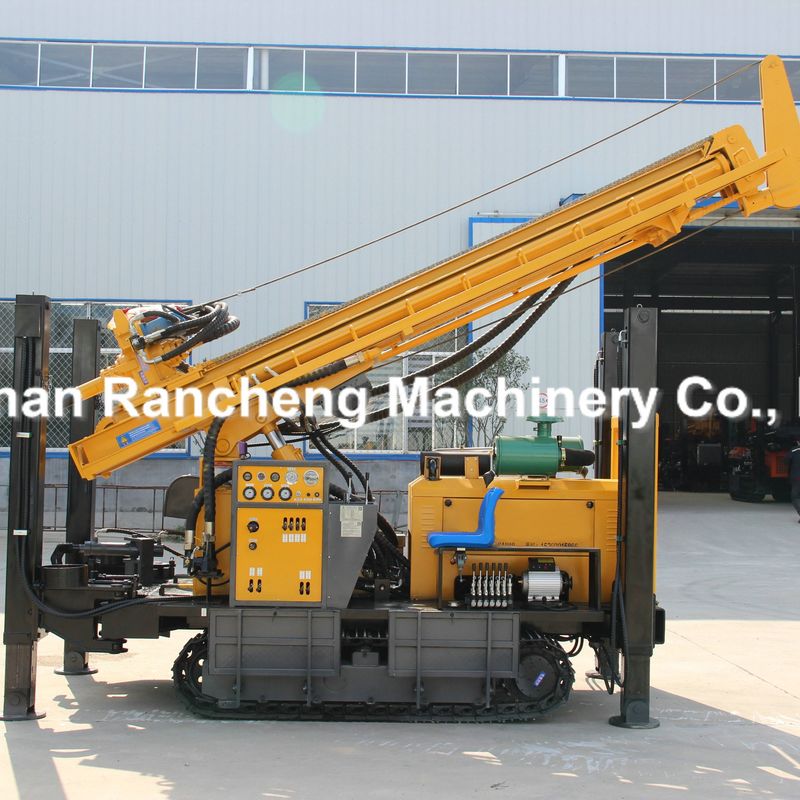

Machine picture display
