Name: Digital Logging System Specially Designed For The Convenience Of Field Work
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

Haus > produits > Geophysikalische Vermessungsausrüstung >

Digital Logging System Specially Designed For The Convenience Of Field Work

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Herkunftsort:

China

Markenname:

RanCheng

Zertifizierung:

CE, ISO 9001:2000

Modellnummer:

RCQ-1

Treten Sie mit uns in Verbindung

Antrag Ein Zitat

Einzelheiten zum Produkt

Signalausgang:

USB -Schnittstelle

Tiefenmessung:

0 ~ 9999,99 Meter

Genauigkeit der Tiefenmessung:

besser als 0,1%

Geschwindigkeitsmessbereich:

0 ~ 9999 Meter/Stunde

Geschwindigkeitsmessgenauigkeit:

Besser als 5 %

Hervorheben:

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

US $ 7000-10000

Verpackung Informationen

Es kann mit einem 20 -Zoll -Behälter versendet werden

Lieferzeit

10-15 Arbeitstage

Zahlungsbedingungen

T/T, Western Union

Versorgungsmaterial-Fähigkeit

100 Sets pro Monat

Verwandte Produkte

Video

Digital Logging System Specially Designed For The Convenience Of Field Work

Erhalten Sie besten Preis

Video

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Erhalten Sie besten Preis

Video

Geophysikalische Bohrlöcher Wasserbrunnen Loggerung Ausrüstung Bohrbrunnen Loggerung Werkzeug, Bohrloch Loggerung Ausrüstung Geotechnische Bohrlochforschung Werkzeug zum Verkauf

Erhalten Sie besten Preis

Video

300m Geophysik-Ausrüstung Bohrloch-Wasserbrunnen-Log-Tool Scheinbarer Widerstand Mess-Logging-System

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

Kontakt jetzt

Beschreibung des Produkts

Digital Logging System Specially Designed For The Convenience Of Field Work

Product Description

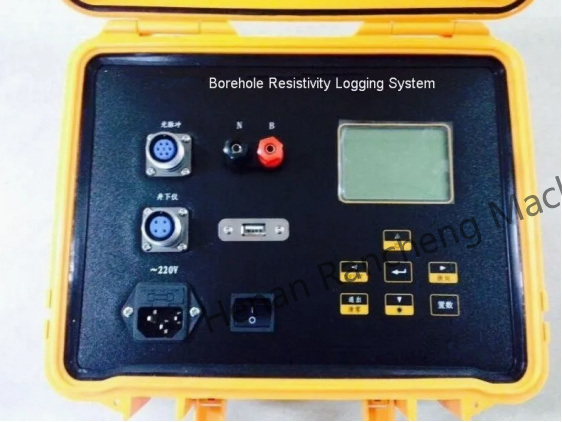

The RCQ-1 resistivity logging equipment is used to measure apparent resistivity in borehole formations. This surface instrument connects to a downhole electrode system and works with a PC to measure parameters such as apparent resistivity and natural potential. Our this RCQ-1 instrument uses an adaptive power supply scheme, delivering a wide range of AC square waves to the downhole formation. Both the supply current and voltage are measured simultaneously. This makes it easy to operate, has a wide measurement range, and is lightweight and reliable.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%

Product Features

Real-time data measurement and transmission for field operations
Kevlar cable and electric winch design for convenient deployment
Dual voltage channels allow simultaneous recording of two curves, improving efficiency
Gradient and natural potential measurement functions for versatile applications
AB measurement method reduces artificial electric field interference
High accuracy and repeatability ensure reliable geophysical survey results
Professional software for fast curve plotting and data processing


Digital Logging System Specially Designed For The Convenience Of Field Work 0

Digital Logging System Specially Designed For The Convenience Of Field Work 1

Digital Logging System Specially Designed For The Convenience Of Field Work 2

Digital Logging System Specially Designed For The Convenience Of Field Work 3

Digital Logging System Specially Designed For The Convenience Of Field Work 4

Digital Logging System Specially Designed For The Convenience Of Field Work 5
