Crawler Mounted Type RCS200C Drilling Rig Drill Depth 200m Hydraulic Drill System And Operation

crawler mounted hydraulic drilling rig

200m depth portable water well drill

RCS200C drilling rig with hydraulic system

Herkunftsort:

China

Markenname:

RanCheng

Zertifizierung:

CE, ISO 9001:2000

Modellnummer:

RCS200C

Treten Sie mit uns in Verbindung

Antrag Ein Zitat

Einzelheiten zum Produkt

Modell:

RCS200C

Bohrtiefe:

200 m

Geologie gebohrt:

Alle Arten

Garantie:

1 Jahr

Dieselmotor:

45 kW

Hervorheben:

crawler mounted hydraulic drilling rig

200m depth portable water well drill

RCS200C drilling rig with hydraulic system

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

US $ 7000-8000

Verpackung Informationen

Standardversand

Lieferzeit

10-15 Arbeitstage

Zahlungsbedingungen

T/T, Western Union

Versorgungsmaterial-Fähigkeit

100 Sets pro Monat

Verwandte Produkte

Video

Maximale Tiefe 200 m RCS200C Gummi-Crawler Kleinwasserbohrmaschine

Erhalten Sie besten Preis

Video

Hydraulische Wasserbohrmaschine für 150 m tiefe Bewässerungsbrunnen

Erhalten Sie besten Preis

Video

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

Erhalten Sie besten Preis

Video

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

Kontakt jetzt

Beschreibung des Produkts

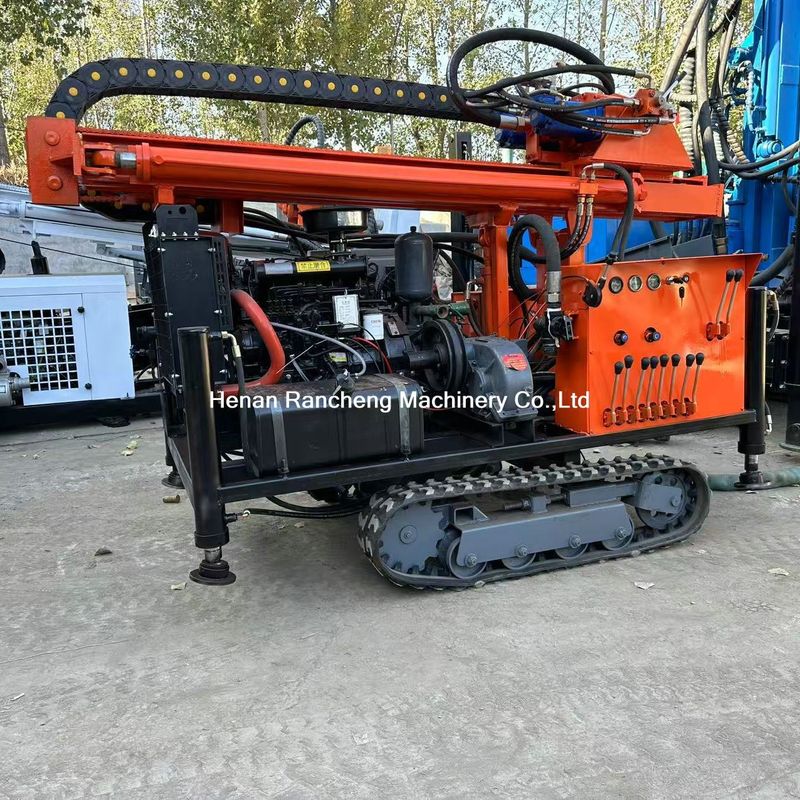

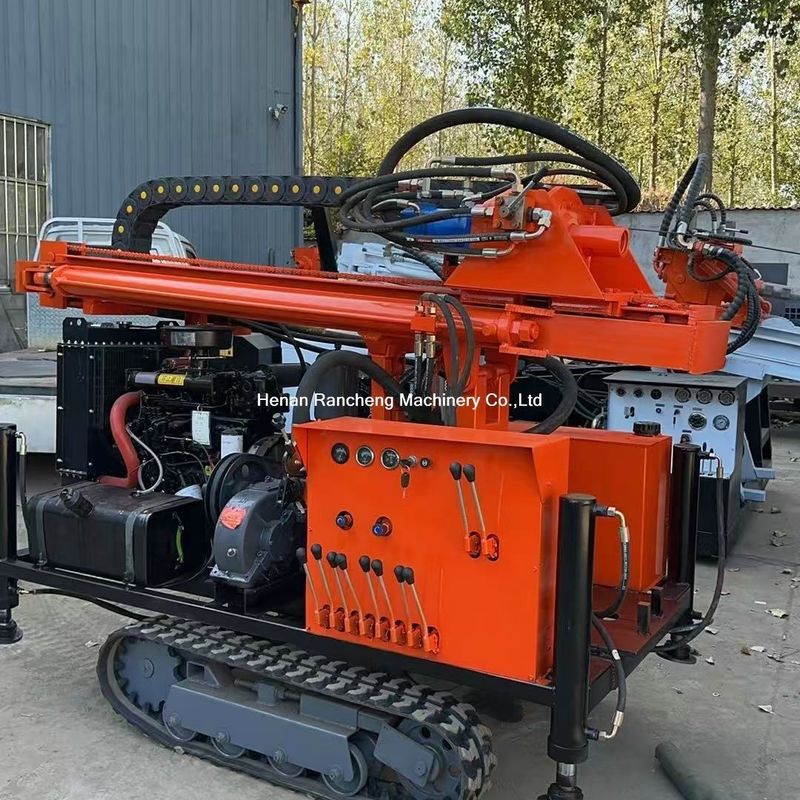

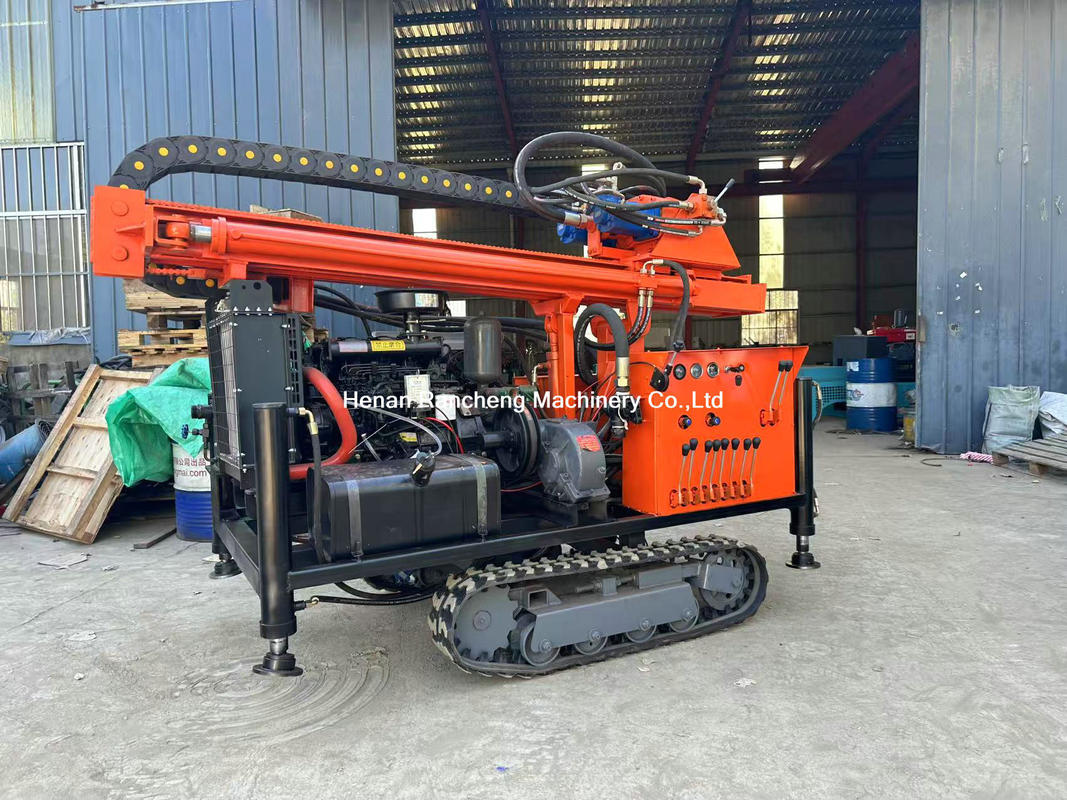

Crawler Mounted Type RCS200C Drilling Rig Drill Depth 200m Hydraulic Drill System And Operation

Product Description

The RCS200C small water well drill is a trailer-mounted small water well drill rig featuring advanced hydraulic technology. It features a top-mounted engine powered by a mud pump and air compressor.

This fully hydraulic, compact drill rig is suitable for deep rotary drilling, reaching a maximum depth of 200 meters. It is lightweight, highly efficient, and versatile. It can perform rotary drilling using air, foam, or mud, depending on the application.

Technical data

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong

Application:

This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling
