Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Herkunftsort:

China

Markenname:

RanCheng

Zertifizierung:

CE, ISO 9001:2000

Modellnummer:

Die Ausrüstung ist in der Lage,

Treten Sie mit uns in Verbindung

Antrag Ein Zitat

Einzelheiten zum Produkt

Motor:

Die Kommission hat eine Reihe von Maßnahmen ergriffen, um die Auswirkungen dieser Maßnahmen auf die

Dieselbehälter-Volumen:

70L

Lochtiefe:

30 m

Bohrrohr:

φ76*3000 mm

Durchmesser des Lochs:

φ90-138 mm

DTH-Hammer:

4"/5"

Drehmoment (max.):

3200 N.m

Hervorheben:

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Zahlungs- und Versandbedingungen

Min Bestellmenge

Preis

US $18000-22000

Verpackung Informationen

Standardversand

Lieferzeit

10-15 Arbeitstage

Zahlungsbedingungen

T/T, Western Union

Versorgungsmaterial-Fähigkeit

100 Stück pro Monat

Verwandte Produkte

Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Erhalten Sie besten Preis

Video

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Erhalten Sie besten Preis

Video

Integrierte Oberflächen-DTH-Bohrmaschine Blasthole-Bohrmaschine für die Mine

Erhalten Sie besten Preis

Video

Automatische integrierte hydraulische DTH-Sprenglochbohranlage für Yuchai YC6J220 162 KW

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

Kontakt jetzt

Beschreibung des Produkts

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Name: Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: Die Ausrüstung ist in der Lage,
Price: 20,000.00 USD
Availability: InStock

Product Overview

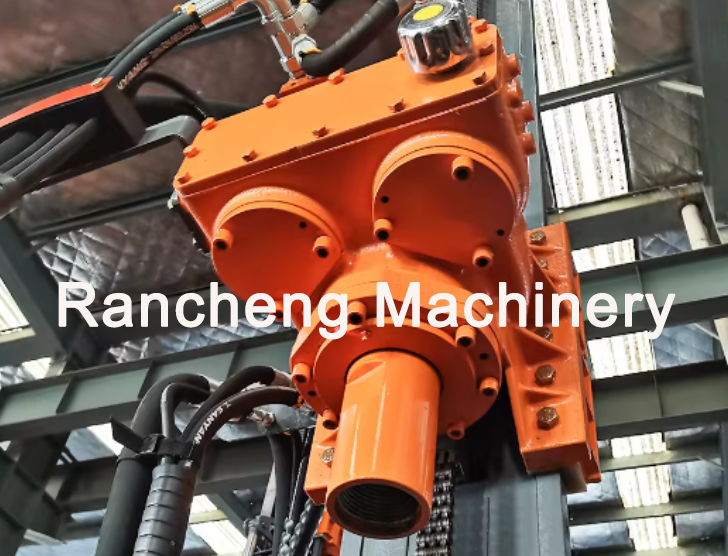

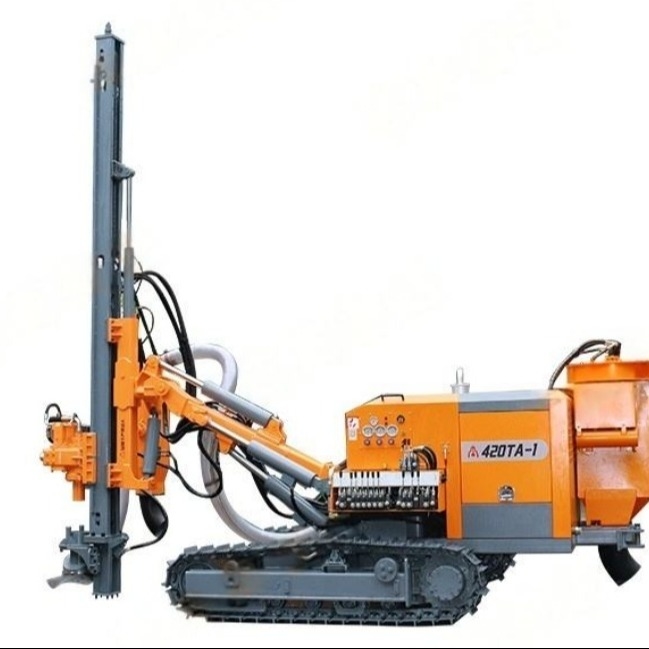

The RCZ420T hydraulic DTH drilling rig is equipped with a dual-motor rotary drill head and a multi-way adjustable rotary speed valve.

With a rotation torque of up to 3200N·m, it meets the high drilling requirements for large 76mm drill rods and 138mm drill diameters.

It has a 3m propulsion length, enabling wider and deeper drilling operations.

Featuring construction-grade crawlers, a piston motor, and a leveling function, it has better climbing capacity and off-road performance. The 420 model can adapt to more complex construction site conditions.

It can drill vertical holes on sloped surfaces, meeting different construction requirements.

Technical Specifications

Model	RCZ420T
Engine	Yuchai YC4A100/70 kW, China II Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume	70 L
Weight	5280 kg
Dimension	542023082500 mm
Hole depth	30 m
Drill pipe	φ76*3000 mm
Hole diameter	φ90-138 mm
DTH hammer	4"/5"
Rotation torque (max.)	3200 N.m
Feed force	20 kN
Pull up force	45 kN
Feed type	Chain/cylinder
Gradient	25°
Track frame osciliation	+/- 10°
Tramming speed	3 km/h

Key Features

The dual-motor rotary drill head, with larger torque and higher rotation speed, meets the drilling needs for 76mm drill rods and 130mm drill diameters.

Construction-grade crawlers and a piston motor ensure more reliable machine performance and better traveling capabilities, allowing it to better adapt to complex ground conditions in surface mining drilling operations.

The centralized control panel is easy to operate, enhancing the efficiency, safety, and comfort of drilling operations.

The newly added leveling function gives the machine better climbing capacity and off-road performance, enabling it to handle different construction environments more effectively. The 420 model can also drill vertical holes on sloped surfaces, meeting various construction needs.

Applications

This RCZ420T hydraulic DTH drilling rig is widely used in open-pit mining blast hole drilling, quarry blast hole drilling, highway blast hole drilling, water conservancy projects, power station construction, railway construction, and other construction drilling operations.

Product Images

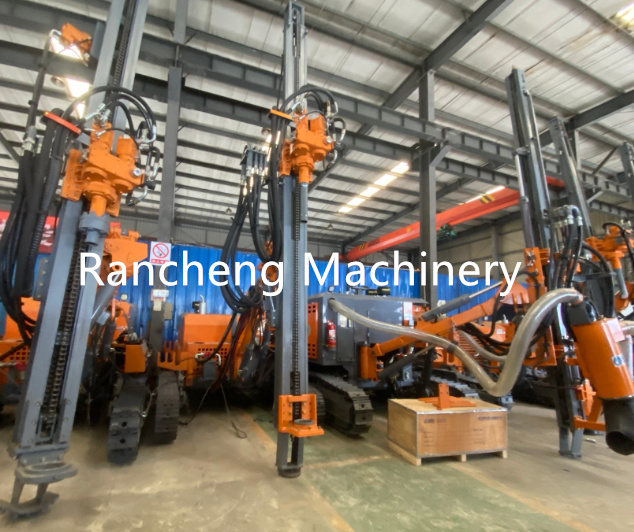

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 0

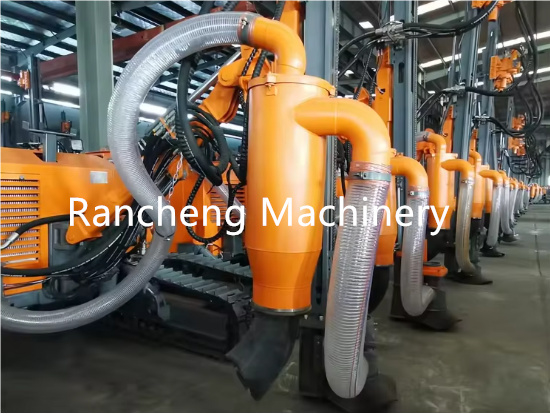

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 1

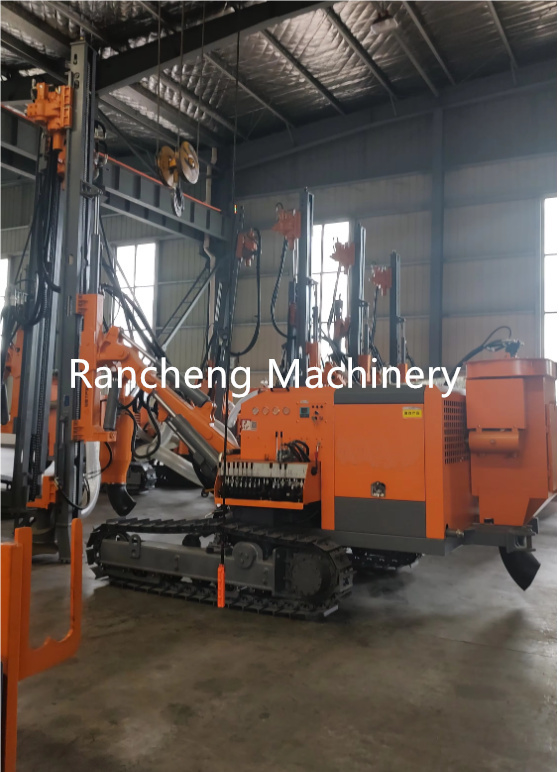

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 2

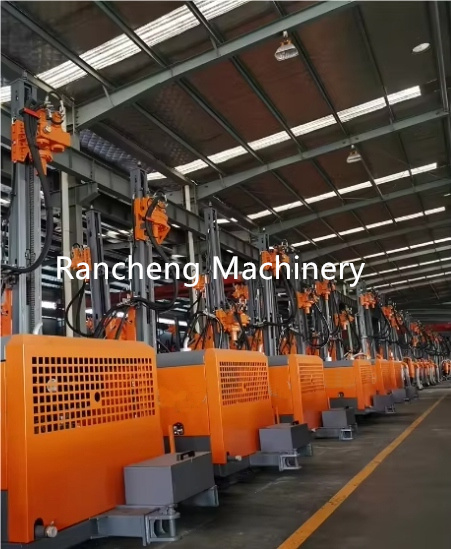

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 3

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 4
